Welker continues to offer new and innovative "best in class" automation components. As a small private company with low engineering costs, our design and build team is quick to deliver new products and custom designs. An in-house testing facility allows for rigorous cycling, ensuring component reliability. Please contact Welker if you would like more information!

HP5M

Manual Bull Pin

Pass Thru GBs
GBP, GBS, GBM

Pass Thru Ground Blocks

NMP

NAAMS Floating Pin

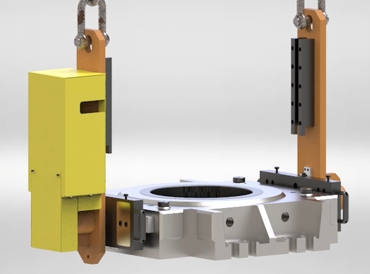

Tooling Rotate Unit

The Tooling Rotate Unit (TRU) is a below-the-hook handling system to safely and gently rotate die or mold sets for assembly, maintenance, cleaning, and repair operations. The TRU attaches directly to customer tooling and connects to an existing overhead crane or handling system. An integrated servo-controlled gear drive provides smooth, controlled motion via remote operator control pendant.

Resources


Mini Expanding Pin

A smaller version of Welker's popular standard expanding pins, for lightweight parts handling. Ideal for applications where complete access to the part is needed. Fingers retract below pin surface and expand to locate, center, or separate.
Available in pin diameters 8-16mm, in 1 or 2 finger-set styles. Unit features NAAMS style side mount or piloted face mount.

Resources
  • Catalog available soon!

HP5M Manual Bull Pin

Welker now offers a manual option for the HP5 Bull Pin. Equipped with a 1-4 Acme lead screw and hand wheel, the bull pin can be manually operated for applications such as pony lines, prototype builds, and CMM rooms. Right or left hand mounting options. Anti-rotate feature allows mounting of 2-way pins and crowder pads.

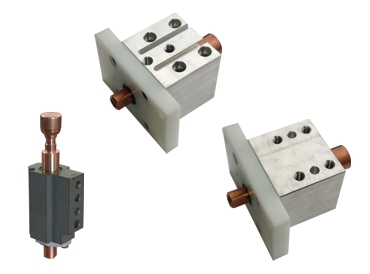

Pass Thru Ground Block

GBP, GBS, GBM
Three fully insulated, compact units that move the grounding cable away from the contact face. GBP pneumatic and GBS (formerly s03013), GBM spring actuated versions provide consistent pressure for weld consistency. Choice of Class 2 copper swivel head adapter assures positive contact. Base is electrically insulated from shunt mount. NAAMS standard mounting with lube free bearing and double seal.

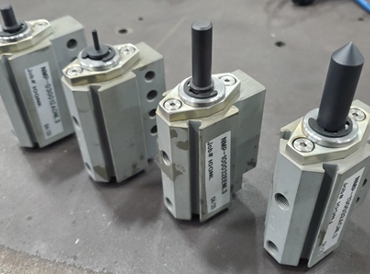

NMP NAAMS Floating Pin

NMP allows pin to float 1.5 mmwhen pneumatically retracted, reducing pin wear and part bind when unloading part. Available with choice of three body styles: side or end mounting for direct NAAMS pin retainer replacement; unit with side and end mounting is a direct replacement for Welker RMP retracting micro pin. Floating feature is sealed to resist contaminants.
Round pin (only) diameters 3-13mm.


Washdown Gripper

S02603 pneumatic parallel gripper is available in lightweight aluminum or corrosion resistant 304 stainless steel, with rubber bellows and/or hard covers. Rack and pinion synchronized jaw operation offers a grip force of 3.6kN [820lbf] closed, and 4.2kN [950lbf] open.
Ideal for robotic parts washers & deburring, foundry and induction heat treat applications.

Resources
  • Catalog available soon
